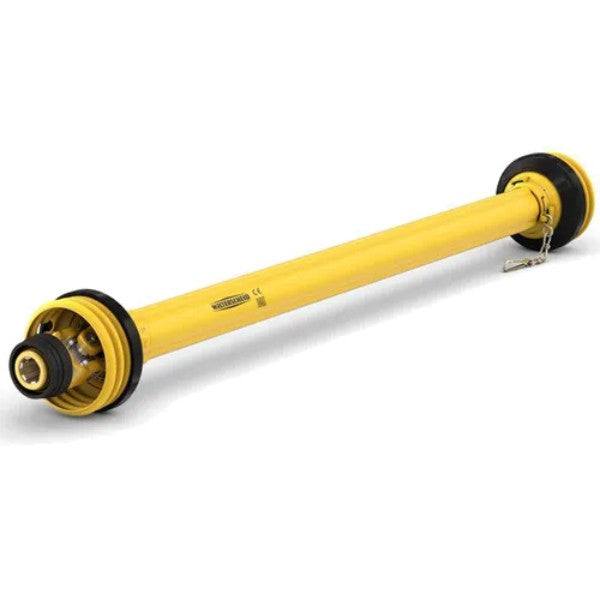

Cardan TDF shaft W2600 L: 1210 mm, Walterscheid Standard
Original price
€2.685,80
-
Original price
€2.685,80
Original price
€2.685,80
€2.685,80
-
€2.685,80
Current price
€2.685,80
- Tractor side connection outer diameter: 1-3/8
- Number of connecting splines/grooves on tractor side: 6
- Tractor side locking type: Automatic locking collar
- Tractor side attachment: Quick release fork
- Outer diameter of machine side connection: 1-3/8
- Number of connection ribs/slots on machine side: 6
- Machine side lock type: Cone clamp
- Machine side fixing: Clamping fork
- Size code: W2600
- Length: 1210
- Power at 540 rpm: 79 kW
- Power at 1000 rpm: 122 kW
- Diameter of the crosshead cover on the tractor side: 42 mm
- Length of the universal joint on the tractor side: 104 mm
- Diameter of the crosshead cover on the machine side: 42 mm
- Length of the universal joint on the machine side: 104 mm
- Outer tube profile type: S6
- Wall thickness of the outer tube: 5 mm
- Large outer tube outer diameter: 71.5 mm
- Inner tube profile type: S5H
- Inner tube wall thickness: 4.5 mm
- Large inner tube outer diameter: 61 mm
- Profile tube shape: Star
- Protection type: SD35
- Number of connecting splines/grooves on tractor side: 6
- Tractor side locking type: Automatic locking collar
- Tractor side attachment: Quick release fork
- Outer diameter of machine side connection: 1-3/8
- Number of connection ribs/slots on machine side: 6
- Machine side lock type: Cone clamp
- Machine side fixing: Clamping fork
- Size code: W2600
- Length: 1210
- Power at 540 rpm: 79 kW
- Power at 1000 rpm: 122 kW
- Diameter of the crosshead cover on the tractor side: 42 mm
- Length of the universal joint on the tractor side: 104 mm
- Diameter of the crosshead cover on the machine side: 42 mm
- Length of the universal joint on the machine side: 104 mm
- Outer tube profile type: S6
- Wall thickness of the outer tube: 5 mm
- Large outer tube outer diameter: 71.5 mm
- Inner tube profile type: S5H
- Inner tube wall thickness: 4.5 mm
- Large inner tube outer diameter: 61 mm
- Profile tube shape: Star
- Protection type: SD35
