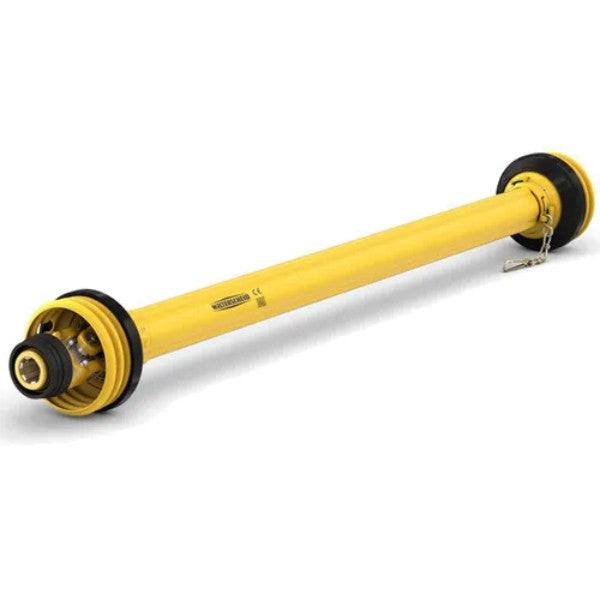

Cardan W2500 C cardan transmission shaft: 710 mm, Walterscheid Standard
Original price
€1.014,90
-
Original price
€1.014,90
Original price
€1.014,90
€1.014,90
-
€1.014,90
Current price
€1.014,90
- Tractor side connection outer diameter: 1-3/8
- Number of connecting splines/grooves on tractor side: 6
- Tractor side locking type: Automatic locking collar
- Tractor side attachment: Quick release fork
- Outer diameter of machine side connection: 1-3/8
- Number of connection ribs/slots on machine side: 6
- Machine side locking type: Clamping collar
- Machine side fixing: Quick release fork
- Size code: W2500
- Length: 710 mm
- Power at 540 rpm: 66 kW
- Power at 1000 rpm: 102 kW
- Diameter of the crosshead cover on the tractor side: 36 mm
- Length of the universal joint on the tractor side: 89 mm
- Diameter of the crosshead cover on the machine side: 36 mm
- Length of the universal joint on the machine side: 89 mm
- Outer tube profile type: S5
- Outer tube wall thickness: 4.5 mm
- Large outer tube outer diameter: 61 mm
- Inner tube profile type: S4
- Large inner tube outer diameter: 51 mm
- Protection type: ST25
- Number of connecting splines/grooves on tractor side: 6
- Tractor side locking type: Automatic locking collar
- Tractor side attachment: Quick release fork
- Outer diameter of machine side connection: 1-3/8
- Number of connection ribs/slots on machine side: 6
- Machine side locking type: Clamping collar
- Machine side fixing: Quick release fork
- Size code: W2500
- Length: 710 mm
- Power at 540 rpm: 66 kW
- Power at 1000 rpm: 102 kW
- Diameter of the crosshead cover on the tractor side: 36 mm
- Length of the universal joint on the tractor side: 89 mm
- Diameter of the crosshead cover on the machine side: 36 mm
- Length of the universal joint on the machine side: 89 mm
- Outer tube profile type: S5
- Outer tube wall thickness: 4.5 mm
- Large outer tube outer diameter: 61 mm
- Inner tube profile type: S4
- Large inner tube outer diameter: 51 mm
- Protection type: ST25
